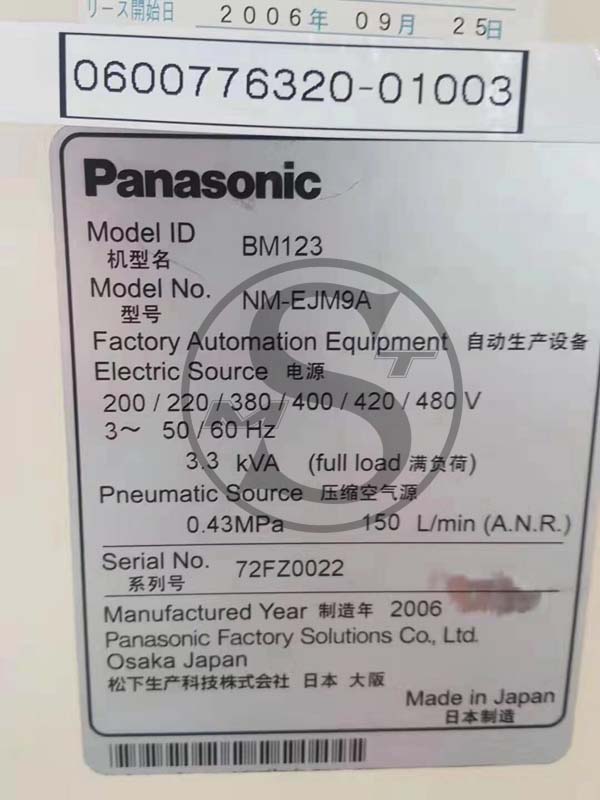

| BM123 | BM133 | |
| Model No. | NMEJM5A | NM-EJM7A |
| PCB Dimensions Min L*W to Max L*W |
50*50mm 330*250mm |
50*50mm 510*460mm |
| Max Speed | 0.12s/chip | |
| Placement Accuracy | Chip 50μm(Cpk≥1），QFP 30μm（Cpk≥1） | |
| No. Of Components Input | Double Tape Feeder:160 | |
| Components Dimensions |
0603 chip to L32xW32xT15mm (Various Depending on Selection Specification) |
|
| PCB Exchange Time*1 | 4.0s | 5.0s |
| Electric Source*2 | 0.43MPa,150L/min(A.N.R) | |
| Dimensions |
1950mm 1500mm*3 1500mm*4 |
1950mm 1750mm*3 1500mm*4 |
| Mass | 1,700kg(Fixed Feeder Carriage Specification) | 1,800kg(Fixed Feeder Carriage Specifications |
